BoltLess Standing Seam Metal Roof Roofing Machine
Quick Details
Model NO:YX39-700;
Control System: PLC Computer Controlling System With Touch Screen;
Raw material:PPGI,GI Steel G550...
Min.Order Quantity: 1 Set/Sets;
Usage:Production of Boltless Roofing Panel ;
Working Speed: 8-12m/min;
Forming Steps:18;
Packing: standard for export;
Port: XIAMEN,China ;
Payment Terms: L/C,T/T;
After-sales Service Provided.
PRODUCT DESCRIPTION
BoltLess Standing Seam Metal Roof Roofing Machine
Main Technic Parameter:
|
Size |
8200*1400*1500mm |
|
Weight |
6300KGS |
|
Voltage |
380V/50HZ/3PH |
|
Motor Power |
7.5KW |
|
Hydraulic Power |
2.2KW |
|
Forming Steps |
18 |
|
Working Speed |
8-12m/min |
|
Height of Roofing |
39mm |
|
Effective Width |
700mm |
|
Material Width |
914mm |
|
Thickness for common use and test |
0.3-0.7mm (Material:PPGI,GI Steel G550) |
|
Tolerance |
±2mm |
|
Roller material |
High grade 45# forged steel, Plated hard chrome and polished all the rollers |
|
Material of shaft |
High grade 45# forged steel |
|
Sprocket wheel |
45 steel high-frequencies quench |
|
Cut-off system |
Hydraulic cutting device |
|
Material for Blade |
Cr12 mould steel with quenched treatment 60-62°C |
|
Material for frame of machine |
Fine welded structural steel |
|
Material for producing roofing |
PPGI,GI Steel G550 |
|
Painted Color |
Deep Blue or Customization |
Main Accessories:
| NO | Items | Quantity | Remarks | |
| 1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
| 2 | Main forming machine | pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Hydraulic system | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Protective cover | 1set | Up to customer | ||
| 3 | PLC control system with touch screen | 1set | ||
| 4 | Run out table | 4pcs | Up to customer | |

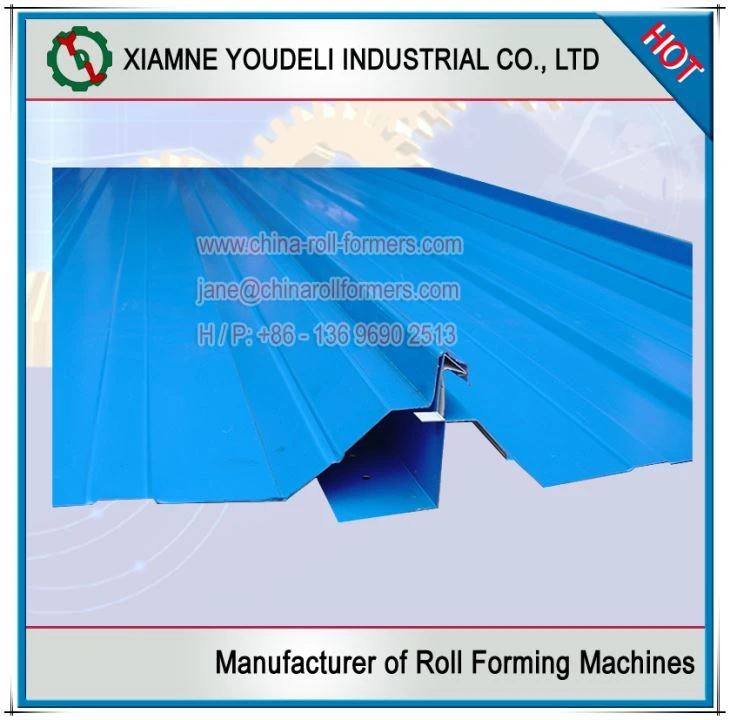

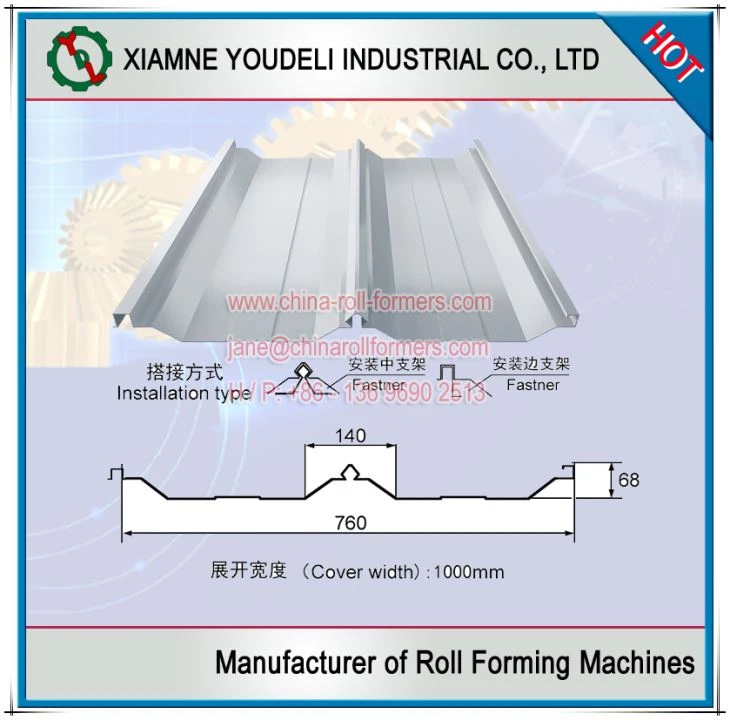

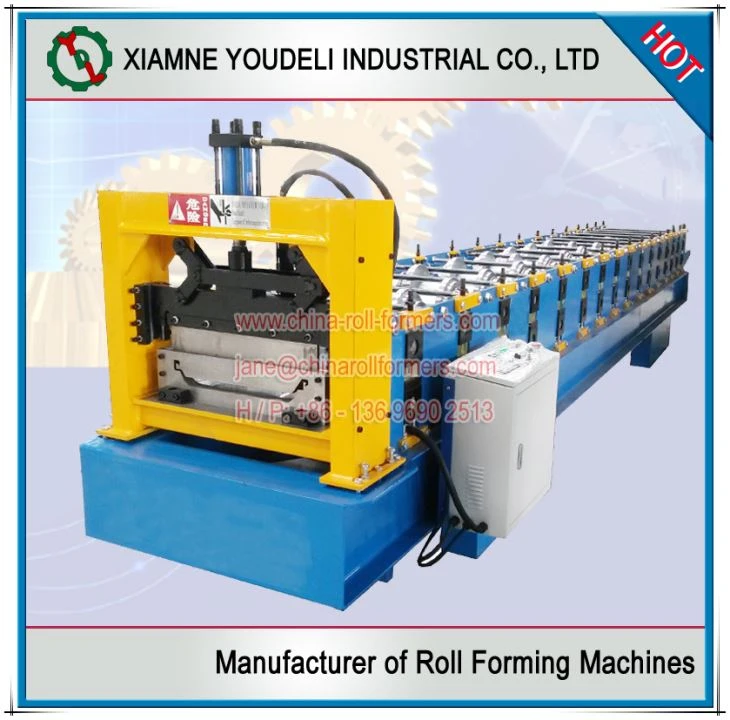

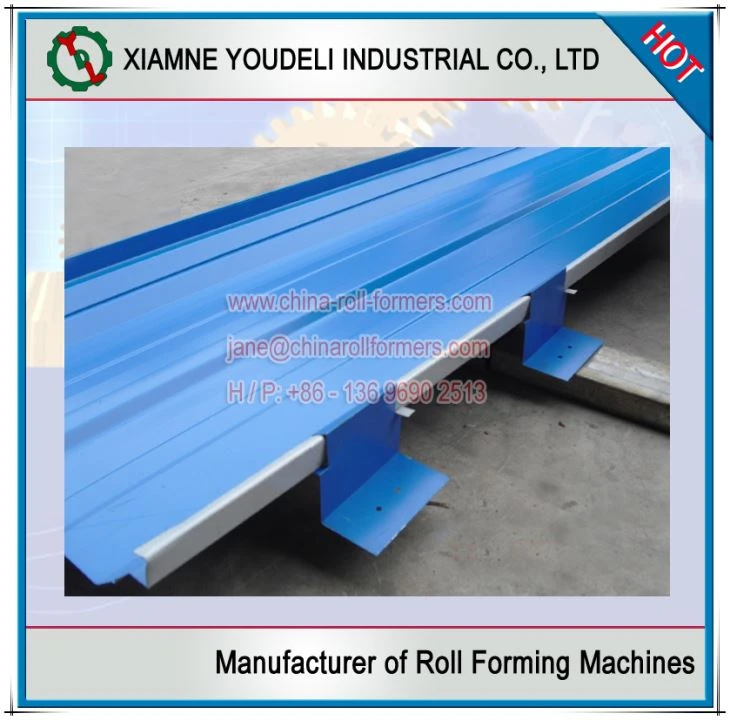

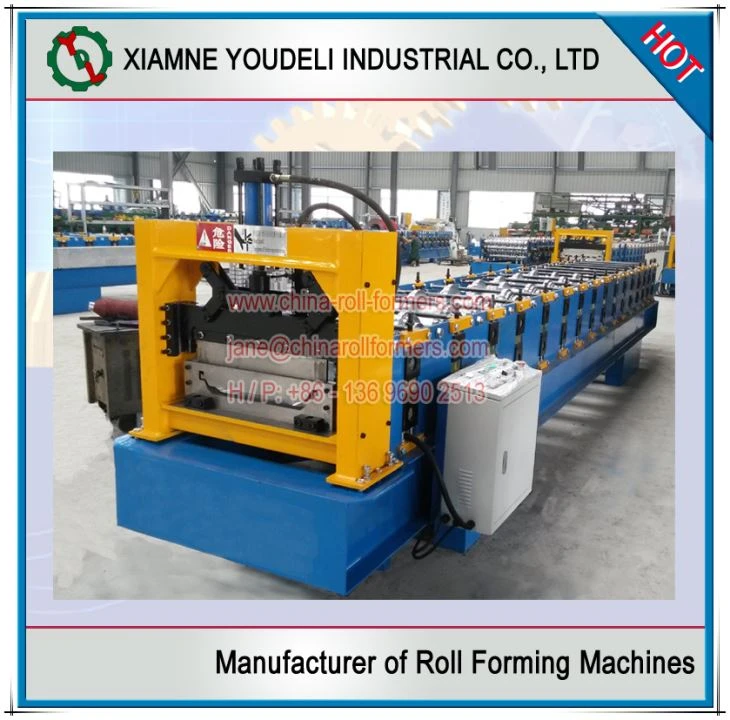

Product Show
