Product Details

This machine is designed specifically for producing Clip Lock standing seam roof panels-one of the more demanding profile types in the metal roofing market. Unlike snap-lock systems that rely on friction, the Clip Lock design uses a mechanically seamed interlock between panels, requiring tighter dimensional control during the roll forming process.

The forming line runs at a consistent speed, with each station precisely aligned to maintain the profile geometry across the full length of the panel. Key forming points-particularly the clip receiving leg and the overlapping seam edge-are shaped gradually over multiple passes to avoid stress fractures in coated materials.

Machine frames are fabricated from heavy-gauge steel plate, with rollers machined from GCr15 bearing steel and hardened to HRC 58-62. This setup holds tolerances within ±0.5mm over a 10-meter panel length, which is critical for Clip Lock panels where the seam engagement must be uniform to achieve the specified wind uplift resistance.

Panel width is adjustable within a set range, allowing the same machine to handle different project specifications without changing tooling. The decoiler, feed table, and run-out support are matched to the machine's capacity, ensuring smooth material flow from coil to finished panel.

Products Description

Professional & Direct

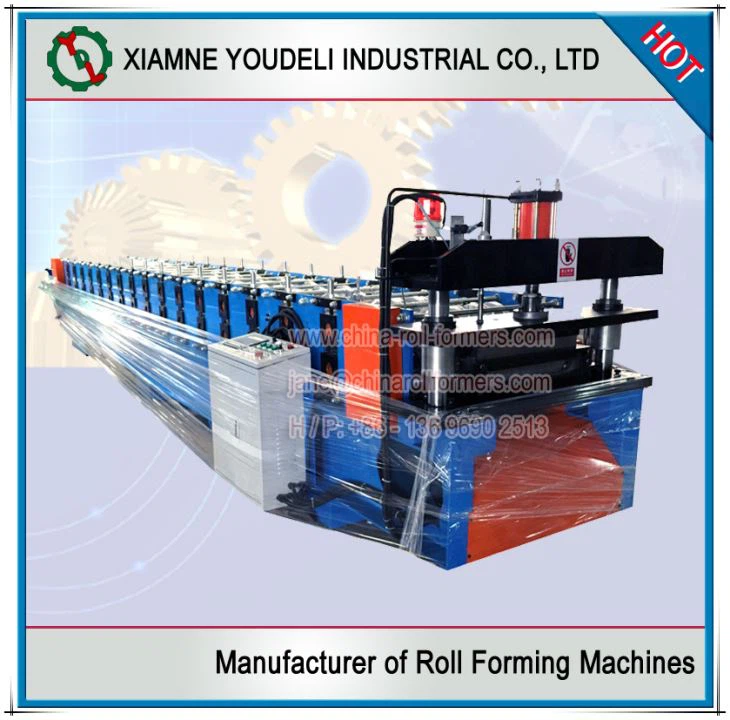

A Steel Clip Lock Standing Seam Roof Making Machine manufactures high-performance, leak-resistant roof panels through a seamless, interlocking process, eliminating the need for exposed fasteners.

Benefit-Oriented

The Steel Clip Lock Standing Seam Roof Making Machine produces durable roofing systems known for superior weather tightness and enhanced wind uplift resistance, ideal for modern architectural demands.

Descriptive & Concise

This equipment forms continuous, structural roof panels from coil steel, creating a clean-profile, standing seam roof system secured with concealed clips instead of through-fasteners.

Main Technical Parameters

Model NO	YX39-700
Size	820014001500mm
Weight	6300KGS
Voltage	380V/50HZ/3PH
Motor Power	7.5KW
Hydraulic Power	2.2KW
Forming Steps	18
Working Speed	8-12m/min
Height of Roofing	39mm
Effective Width	700mm
Material Width	914mm
Thickness for common use and test	0.3-0.7mm (Material:PPGI,GI Steel G550)
Tolerance	±2mm
Roller material	High grade 45# forged steel, Plated hard chrome and polished all the rollers
Material of shaft	High grade 45# forged steel
Sprocket wheel	45 steel high-frequencies quench
Cut-off system	Hydraulic cutting device
Material for Blade	Cr12 mould steel with quenched treatment 60-62°C
Material for frame of machine	Fine welded structural steel
Material for producing roofing	PPGI,GI Steel G550
Painted Color	Deep Blue or Customization
