Portable click-lock vertical seam metal roof roll forming machine

Purchase Qty. 1 Set
Port: Xiamen China
Payment Terms: L/C, T/T
Certification: CE, ISO
Automatic Grade: Automatic
Transmission  Hydraulic Pressure
Send Inquiry
Chat Now
Description



Portable Click-lock Vertical Seam Metal Roof Roll Forming Machine

Main Lnfo.

Model NO                           YX65-320-420

Automation                         Full-Automatic

Language                            English

Guaranty                             12 Months

Transport Package              Naked Packing

Color                                   Blue or According to Customers′request

Control System                   Controlled by PLC

Cutter Type                         Hydraulic Cutting

Main Technical Parameter:



Size

8100*2050*1600mm

Weight

8000KGS

Voltage

380V/50HZ/3PH

Motor Power

11KW

Hydraulic Power

2.2KW

Forming Steps

17steps

Working Speed

8-18m/min

Height of Roofing

65mm

Effective Width

320mm,420mm

Material Width

500mm

Cutting Length Tolerance

10m±2mm

Roller Material

High grade 45# forged steel, Plated hard chrome

and polished all the rollers

Material of shaft

High grade 45# forged steel

Material Of Main Equipment

Roller material: high grade NO.45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm Active shaft material: high grade NO.45 carbon wrought steel at Φ 72mm Cutting blade: SKD11mould steel with quenched treatment.

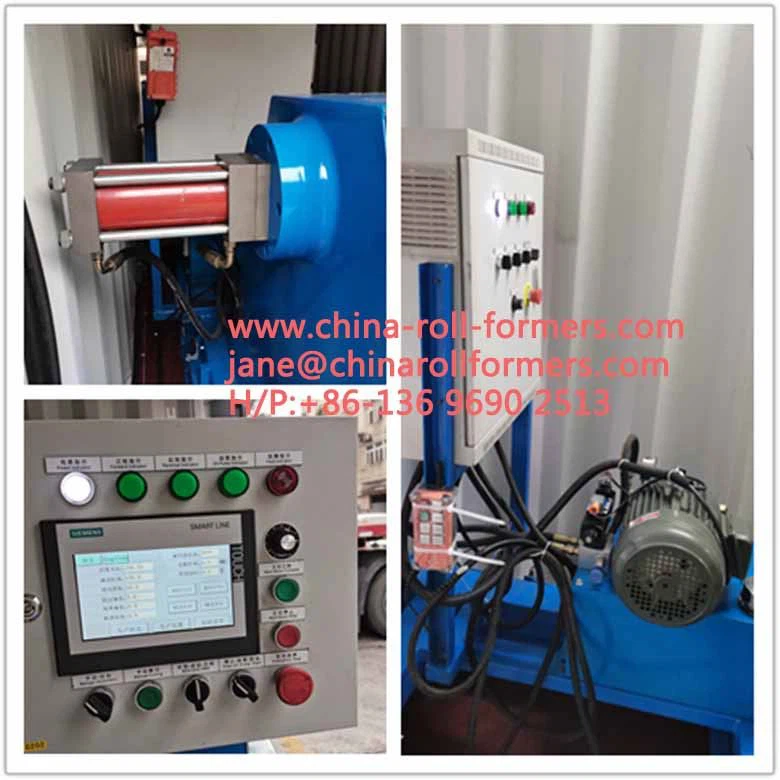

Main Accessories Of Portable Click-Lock Roll Forming Machine For Metal Roofing:






Company Profile

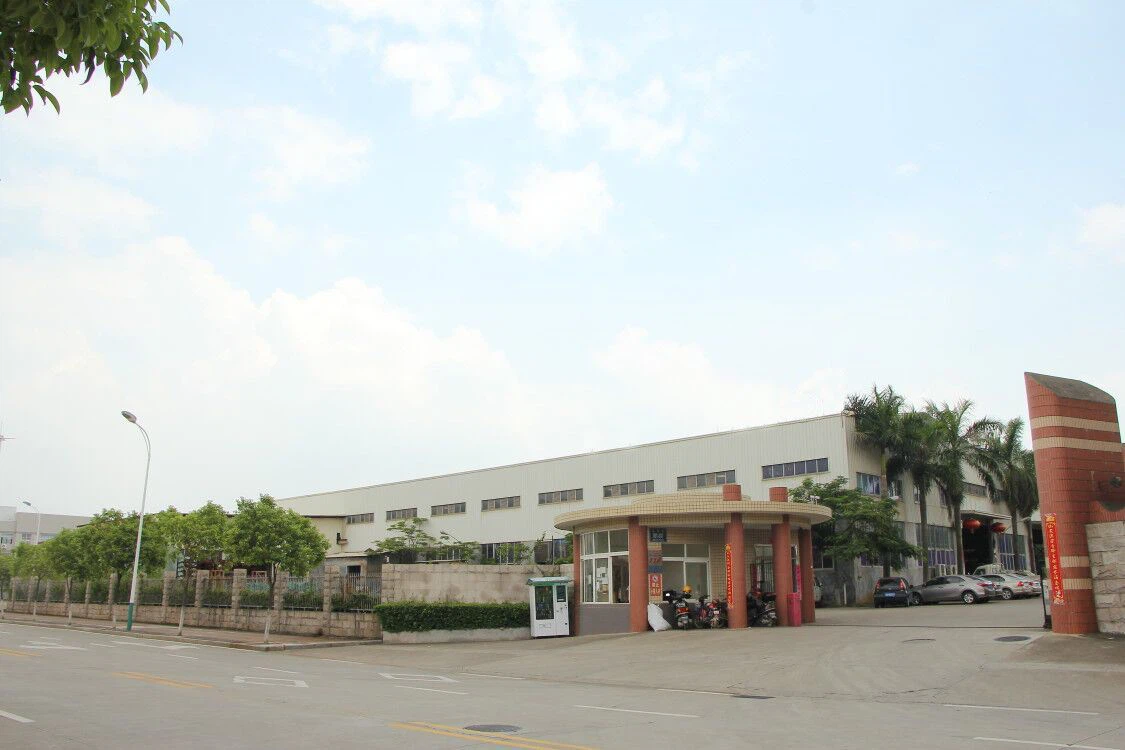

Factory Gate.jpg

Factory Gate

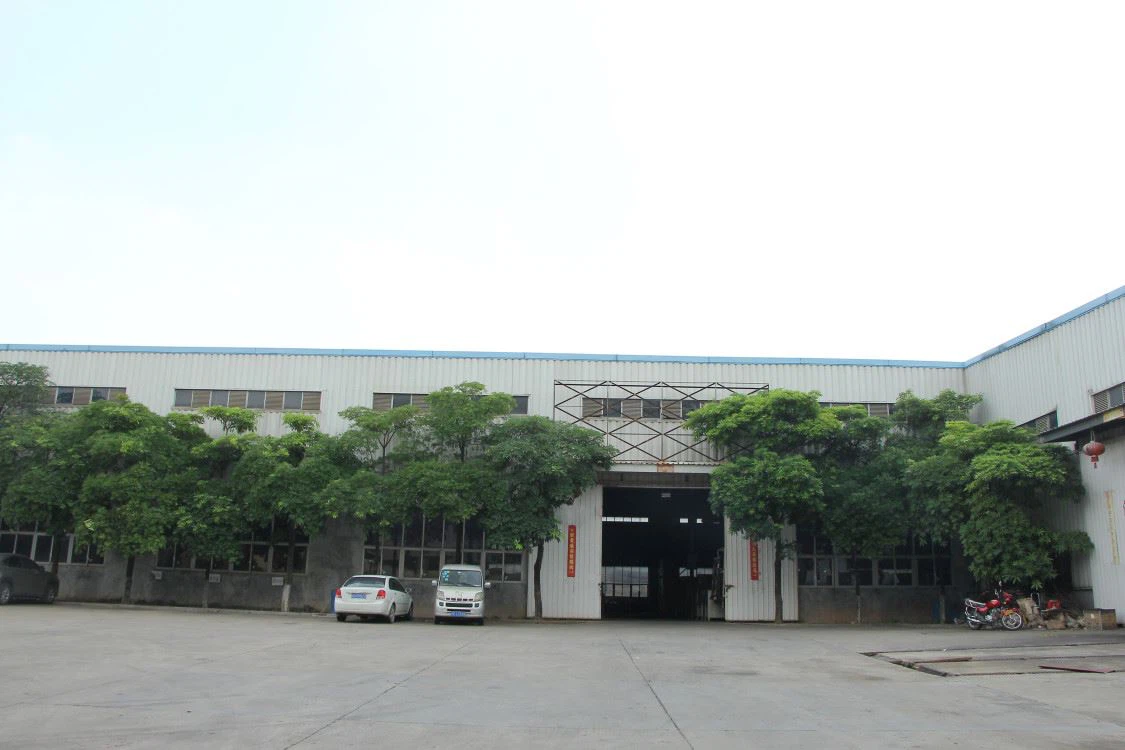

Factory Area Workshop Entrance.jpg

Factory Area Workshop Entrance

Xiamen YOUDELI Industrial Co.,Ltd and is professional manufacturer and exporter who are concemed with more nearly 20 years of experience for design, development and maufacture of Cold Roll Forming Machines and Roofing System Accessories,Punching Moulds/Dies and Hardware Products. Such as Standing Seam Roofing Machines, Automatic Smooth/Crimping Roofing Curving Machines, C/Z Purlin Machines,C/U Profile Light Steel Framing Forming Machines,Tile Roofing Machines,Wall/Siding Forming Machines,Floor Decking Machines, Flattening-Slitting-Cutting Machines, Roofing Seaming Machines, AI Clips, Steel Brackets, Shear Studs and Other Related Products.We are located in nice island City-xiamen with  convenient Transportation access.All of our Products comply with intemational quality standards and are greatly appreciated in a variety of different markets throughout the word. Such as Korea, Philippines, Malaysia, Singapore Indonesiam,Thailand,India,Bietham,India,Turkey, UAE lran, Lebanon,Sri lanka Kazakhstan,Libya, Uganda, Canada Brazil, Bolivia, Australia, etc.over 30 countries. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us.We are looking forward to forming successful business relationships with new clients around the world in the near future. Bearing in mind the service tenet of "Pour your satisfaction with your heart", YOUDELI is guided by the Enterprise Developpment Philosophy of "honesty first, honesty and pragmatism" YOUDELI industrial sincerely welcome friends from all walks of life to visit the company, study, guidance, we look forward to your arrival!

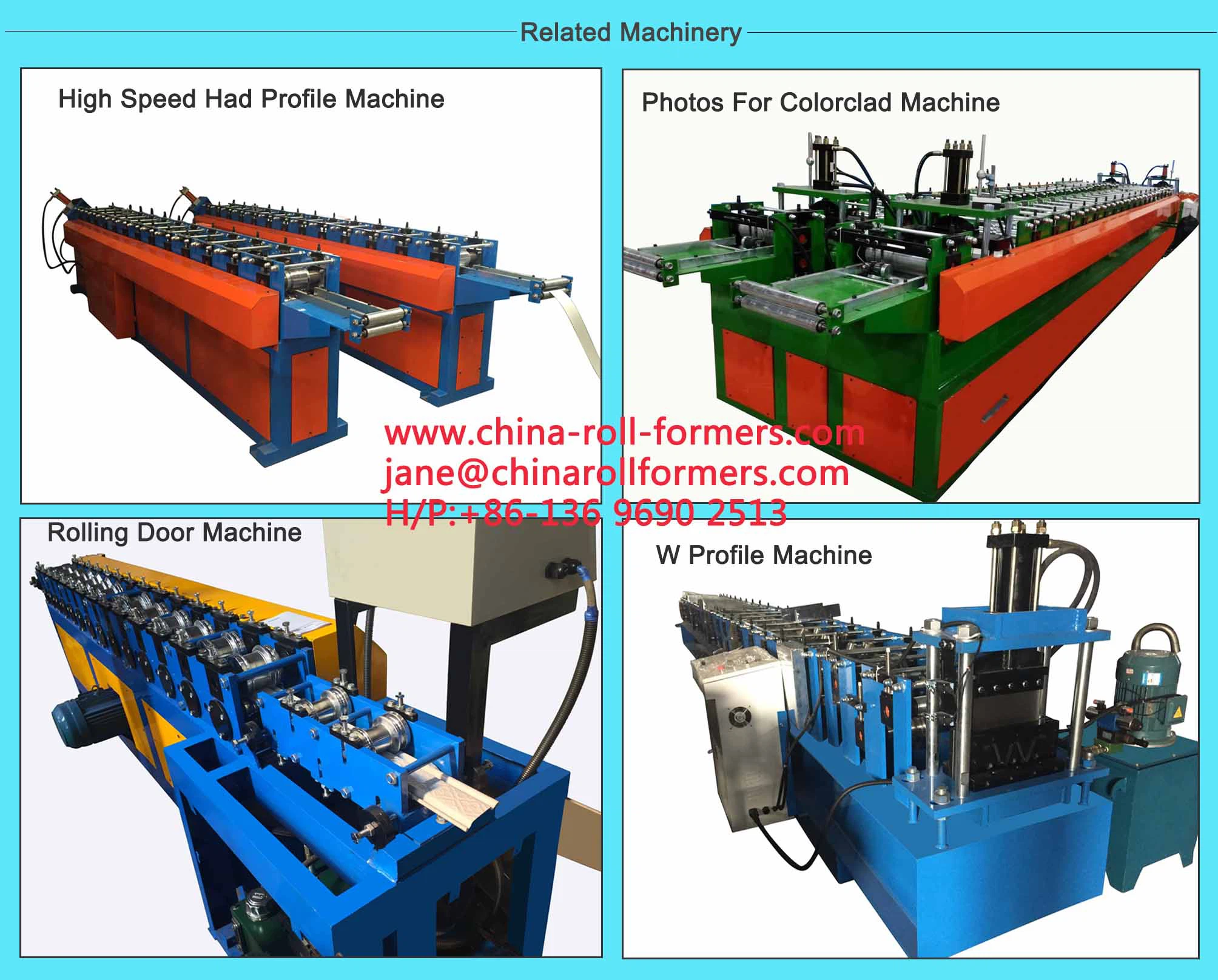

Other Podruct.jpg





Our Customers& Exhibition

Our Customers & Exhibition-1.jpg





Our Services

1.Installation and training:

A.If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also trainyour workers/technician face to face.

B.Without visiting, we will send you user manual and video to teach you to install and operate.

C.If buyer needs our technician to go to your local factory, please arrange board and lodging and

other necessary things.

2. after Service

A.One year guarantee for whole machine.

B.24 hours technical support by email or phone call.

C. If there is any problem found of the machine, we will repair it for free in one year.

Ship Equipment

Ship Equipment.jpg



FAQ

Q1: Are you manufacture or factory ?

A1: we are manufacture and we have more than 10 years' experience.

Q2: How long is the warranty period?

A2: We have a professional QC department in charge of products' quality.

Q3: How long is the warranty period?

A3: 13months calculated from the date of shipment from our factory.During warranty period, except the artificial factor, the spares are free to maintenance, beyond the warranty time, the buyer needs to pay the spare charge and shipping cost.

Q4: How to install the machine?

A4: We will send technician to your factory to install the machine, and teach your workers to use it. You pay all related costs, including visa charge, double-way tickets, hotel, meals, and technician salary.

When you arrive our station, we will arrange to pick up you there!
