Small Size Standing Seam Roll Forming Machine
Quick Details
Model NO:KLS38-220-530;
Control System: PLC Computer Controlling System with Touch Screen;
Raw material:GIsteel, PPGI, Al...
Min.Order Quantity: 1 Set/Sets;

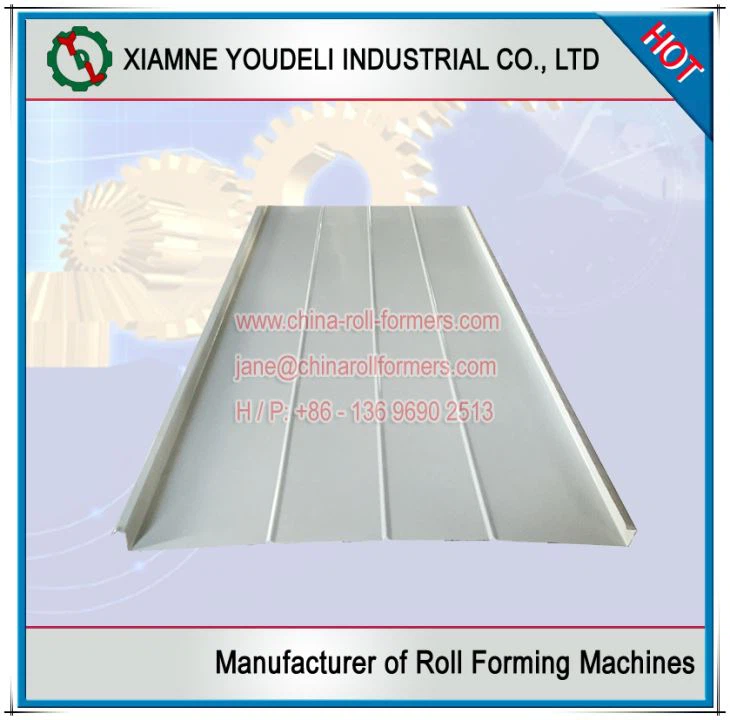

Usage:Produce standing seam roofing panels;
Packing: standard for export;
Port:XIAMEN,China;
Payment Terms:L/C,T/T;
After-sales Service Provided.
PRODUCT DESCRIPTION
KLS25-200-530 Small Size Standing Seam Roll Forming Machine
Main Technic Parameter:
|
Size |
2000*1200*1200mm |
|
Weight |
1100KGS |
|
Voltage |
380V/50HZ/3PH |
|
Motor Power |
2.2KW |
|
Hydraulic Power |
2.2KW |
|
Forming Steps |
6steps |
|
Forming Steel Thickness |
0.5-0.8mm |
|
Forming Aluminum Thickness |
0.7-1.0mm |
|
Height of Roofing |
25mm |
|
Effective Width of Roofing |
200mm - 530mm |
|
Material Width |
280mm - 610mm |
|
Tolerance |
±2mm |
|
Roller material |
High grade 45# forged steel, Plated hard chrome and polished all the rollers |
|
Material of principal axis |
High grade 45# forged steel |
|
Sprocket wheel |
45 steel high-frequencies quench |
|
Cut-off system |
Hydraulic cutting device |
|
Material for Blade |
Cr12 mold steel with quenched treatment |
|
Material for frame of machine |
Fine welded structural steel,and one side of frame can be moved for adjusting the size 200mm to 530mm; |
|
Material for producing roofing |
Normal PPGI,GI steel, Aluminum |
|
Painted Color |
Green or Customization |
Main Accessories:
| NO | Items | Quantity | Remarks | |
| 1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
| 2 | Main forming machine | Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Hydraulic system | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Protective cover | 1set | Up to customer | ||
| 3 | PLC control system with touch screen | 1set | ||
| 4 | Run out table | 4pcs | Up to customer | |
Product Show
OUR ADVANTAGE
1.High quality Raw materials, Parts, PLC computer controlling system for our machines.
2.Groups of professional engineers, designers and oversea sales for roll forming machines.
3.Rich experiences of design and manufacture, and export for roll forming machines.
4.Customize machines as per your requests.
5.Punctual delivery time, Good technology support and After-sale service, Long quality guarantee.
