Product Overview

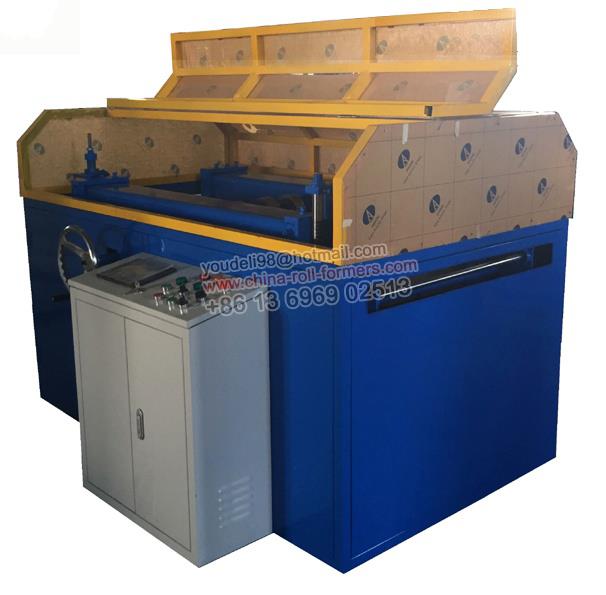

The Portable Standing Seam Roofing Roll Former is a compact and mobile roll forming machine designed for on-site production of standing seam metal panels. Ideal for roofing contractors, steel structure builders, and prefab housing manufacturers, this unit allows teams to fabricate high-precision roof panels directly at the jobsite-saving time, minimizing transport costs, and improving installation efficiency.
Built with a heavy-duty steel frame and chrome-coated rollers, the machine offers stable performance and excellent panel consistency. Whether you're forming Snap Lock or Mechanical Lock profiles, this roll former ensures tight seams, clean lines, and compatibility with modern roofing systems.
| Model NO | KLS38-220-530 |
| Control System | PLC Computer Controlling System with Touch Screen |
| Raw material | GIsteel, PPGI, Al... |
| Min.Order Quantity | 1 Set/Sets |
| Usage | Produce standing seam roofing panels |
| Packing | standard for export |
| Port | XIAMEN,China |
| Payment Terms | L/C,T/T |
Products Description
Technical Specifications
| Parameter | Detail |
| Material Type | PPGI, GI, Aluminum Coil |
| Forming Steel Thickness | 0.5-0.8mm |
| Forming Aluminum Thickness | 0.7-1.0mm |
| Effective Width | 305 mm / 317.5 mm / Customized |
| Feeding Width | 406 mm / Customized |
| Roller Stations | 11 rows |
| Roller Shaft Diameter | 70 mm |
| Roller Material | GCr15 Steel, Heat Treated + Chrome Coated |
| Drive Method | Chain Drive |
| Control System | Manual (Standard) / PLC (Optional) |
| Forming Speed | 10–15 m/min |
| Motor Power | 2.2KW |
| Hydraulic Power | 2.2KW |
| Voltage Options | 220V / 380V / 415V / 440V, 50Hz or 60Hz |
| Machine Size | 3.2 m × 0.95 m × 1.2 m |
| Machine Weight | Approx. 1000 kg |
| Packaging | Standard Export Wooden Case |
This roll former is engineered for flexibility and durability. It supports multiple roof panel profiles, including Snap Lock and Mechanical Lock, making it adaptable to a wide variety of roofing systems. The high-precision forming rollers ensure consistent panel geometry, while the robust frame and industrial chain drive provide long-lasting performance even under continuous site use.
With a forming speed of up to 15 meters per minute and a user-friendly manual control system, it is easy to operate, maintain, and deploy in tight workspaces or remote locations. Optional PLC control is also available for projects that require automated production.
MORE PRODUCTS
| Standing Seam Metal Roof Forming Machine | Hydraulic Sheet Bending Machine |
| Portable Roofing Machine and Portable Curving Machine | Flattening - Slitting - Cutting Machine |
| Metal Glazed Tile Roof Roll Forming Machine | Ridge Cap roof Roll Forming making Machine |
| C Z Purin Roll Forming Machine | Light Gauge Steel Frame Machine |
| Floor Decking Roll Forming Machine | Crimping Curving Machine |
Applications
The Portable Standing Seam Roofing Roll Former is used across a wide range of roofing and building applications:
1.Steel structure warehouses and industrial plants.
2.Commercial buildings and retail centers.
3.Modular and prefabricated housing production lines.
4.Temporary construction sites or remote locations.
5.Projects with curved, tapered, or customized standing seam panels.
Its compact size and transport-ready frame make it ideal for jobsite panel forming, especially for contractors looking to reduce reliance on factory-supplied panels and improve project timelines.
OUR CUSTOMERS & EXHIBITION
Ideal Buyers
This machine is trusted by:
Roofing contractors performing on-site standing seam panel fabrication
Steel frame builders integrating roofing into their structural projects
Prefab housing manufacturers producing standardized roof panels
Construction equipment rental providers serving mobile project teams
Building material distributors looking for export-ready forming machines
OEM system suppliers requiring customized panel forming solutions
Frequently Asked Questions
Q1: Can the machine produce different panel widths?
A: Yes. Feeding and effective widths can be customized to your profile specs.
Q2: Is this machine suitable for jobsite use?
A: Absolutely. Its portable size and chain-drive system are built for frequent relocation and easy setup.
Q3: What profiles are supported?
A: Standard Snap Lock and Mechanical Lock profiles are available. We also support custom profile designs.
Q4: Do you offer OEM or branding services?
A: Yes. We provide OEM options, color customization, and customer logo marking.
Q5: Is export packaging included?
A: Yes. The machine comes in a reinforced wooden crate, suitable for sea and land transportation.
