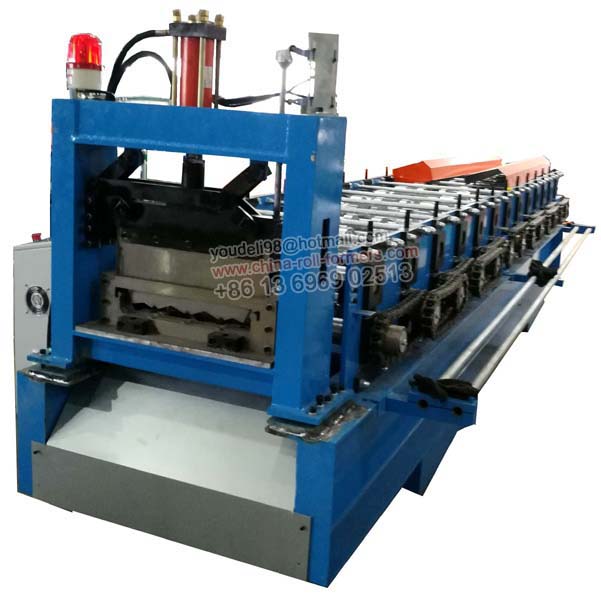

Standing Seam Metal Roofing Machine
Quick Details
Model NO:YX65-300-425;
Control System: PLC Frequency Control System with Touch Screen;
Raw material:Al-Mg-Mn sheet, galvanized shee,colored prepainted sheet...
Min.Order Quantity: 1 Set/Sets;
Usage:Production of Roof Panel;
Packing: standard for export;
Port: XIAMEN,China ;
Payment Terms: L/C,T/T;
After-sales Service Provided.
PRODUCT DESCRIPTION
Standing Seam Metal Roofing Machine:
Main Technic Parameter:
|
Size |
5800*1700*1500mm |
|
Weight |
7000KGS |
|
Voltage |
380V/50HZ/3PH |
|
Motor Power |
7.5KW*2 sets |
|
Hydraulic Power |
2.2KW |
|
Forming Steps |
13steps |
|
Working Speed |
8-14m/min |
|
Height of Roofing |
65mm |
|
Effective Width |
400mm,425mm |
|
Feeding Material Width |
575-578mm,600-603mm |
|
Thickness for Aluminum Sheet |
0.8-1.2mm |
|
Thickness for Steel |
0.6-1.0mm |
|
Min. Width of tapered roofing |
250mm |
|
Min.Length of tapered roofing |
1000mm |
|
Cutting,Forming Tolerance |
±2mm |
|
Roller material |
High grade 45# forged steel, Plated hard chrome and polished all the rollers |
|
Material of shaft |
High grade 45# forged steel |
Main Accessories for Standing Seam Metal Roofing Machine:
| No | Items | Quantity | Remarks | |
| 1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
|
2 |
Main forming machine |
Pre-cutting device | 1set | Up to customer |
| Feeding device | 1set | |||
| Hydraulic system | 1set | |||
| Roll forming system | 1set | |||
| Post cutting device | 1set | |||
| Protective cover | 1set | Up to customer | ||
| 3 | PLC control system with touch screen | 1set | ||
| 4 | Run out table | 4pcs | Up to customer | |
WORKING PROCESS for Standing Seam Metal Roofing Machine
Product Show
OUR ADVANTAGE
1.High quality Raw materials, Parts, PLC computer controlling system for our machines.
2.Groups of professional engineers, designers and oversea sales for roll forming machines.
3.Rich experiences of design and manufacture, and export for roll forming machines.
4.Customize machines as per your requests.
5.Punctual delivery time, Good technology support and After-sale service, Long quality guarantee.
Contact Us
If you need the standing seam panel machine,Please feel free to contact us.We are looking forward to forming successful business relationships with new clients around the world in the near future.
We are aways ready for you!
OUR CUSTOMERS & EXHIBITION
PROJECT
Youdeli Industrial is one of the leading manufacturers and suppliers of 65mm standing seam metal roof panel roll forming machine for sale. Our factory has been specialized in the design, development and manufacturing of good quality and customized products made in China for nearly 20 years. Welcome to try our good service.
