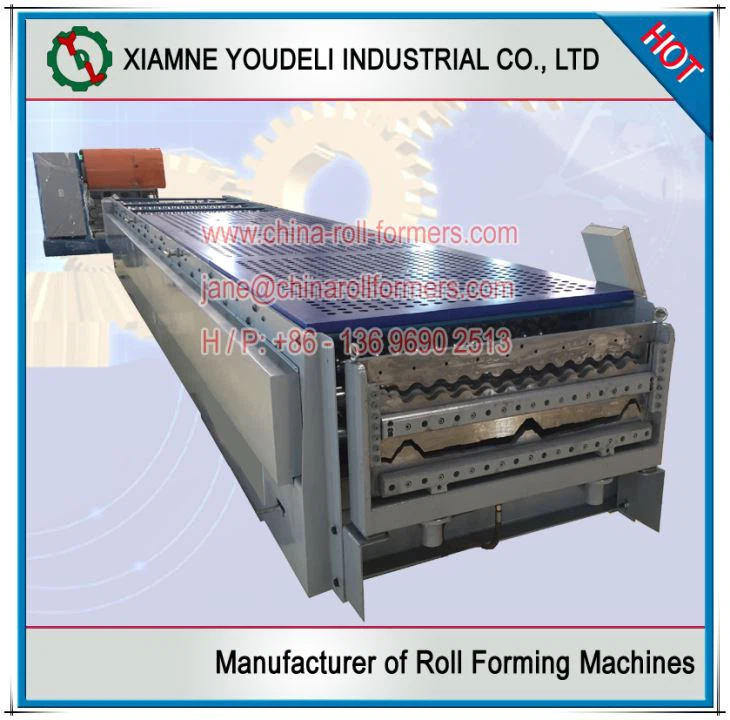

Double Layer for Corrugated and Trapezoidal Roof Tile Roll Forming Machine
Quick Details
Model NO:YX18-76.2-990 and YX25-144-1008;
Control System: PLC Frequency Control System;
Raw material: Normal Prepainted Sheet G245...
Working Speed:6-12m/min;
Min.Order Quantity: 1 Set/Sets;
Usage:Usage:Production of Corrugated and Trapezoidal Roof Panel;
Packing: standard for export;
Port: XIAMEN,China;
Payment Terms: L/C,T/T;
After-sales Service Provided.
PRODUCT DESCRIPTION
YX18-76.2-990 and YX25-144-1008 Double Layer for Corrugated and Trapezoidal Roof Tile Roll Forming Machine:
Main Technic Parameter:
|
Size |
8400*1700*1700mm |
|
Weight |
8000KGS |
|
Voltage |
380V/60HZ/3PH |
|
Motor Power |
7.5KW |
|
Hydraulic Power |
3.7KW |
|
Forming Steps for YX18-76.2-990 |
14 steps |
|
Forming Steps for YX25-144-1008 |
16 steps |
|
Working Speed |
6 -12m/min |
|
Height of Roofing for YX18-76.2-990 |
18mm |
|
Height of Roofing for YX25-144-1008 |
25mm |
|
Effective Cover Width for YX18-76.2-990 |
990mm |
|
Effective Cover Width for YX25-144-1008 |
1008mm |
|
Feeding Material Width |
1219mm |
|
Thickness |
0.38-0.6mm |
|
Common use and test machine using |
0.5m |
|
Tolerance |
±2mm |
|
Roller material |
High grade 45# forged steel, Plated hard chrome on the surface of rollers, polished all the rollers |
|
Material of shaft |
High grade 45# forged steel |
|
Sprocket wheel |
45 steel high-frequencies quench |
|
Cut-off system |
Hydraulic cutting device |
|
Material for Blade |
Cr12 steel with quenched treatment 60-62°C |
|
Material for frame of machine |
Fine welded structural steel; |
|
Material for roofing |
Normal Prepainted Sheet G245 |
|
Painted Color |
Blue or Customization |
Main Accessories:
|
(1) Main Forming Machine; |
|
(2) 5 Tons Manul Uncoiler ; |
|
(3) Manual Pre-Cutting; |
|
(4) Hydraulic System; |
|
(5) PLC Computer Controlling System ; |
|
(6) Hydraulic Forming Cutter; |
|
(7) Run Out Tables(3 PCS); |
|
(8) Tools; |
|
(9) Operation Manual. |
