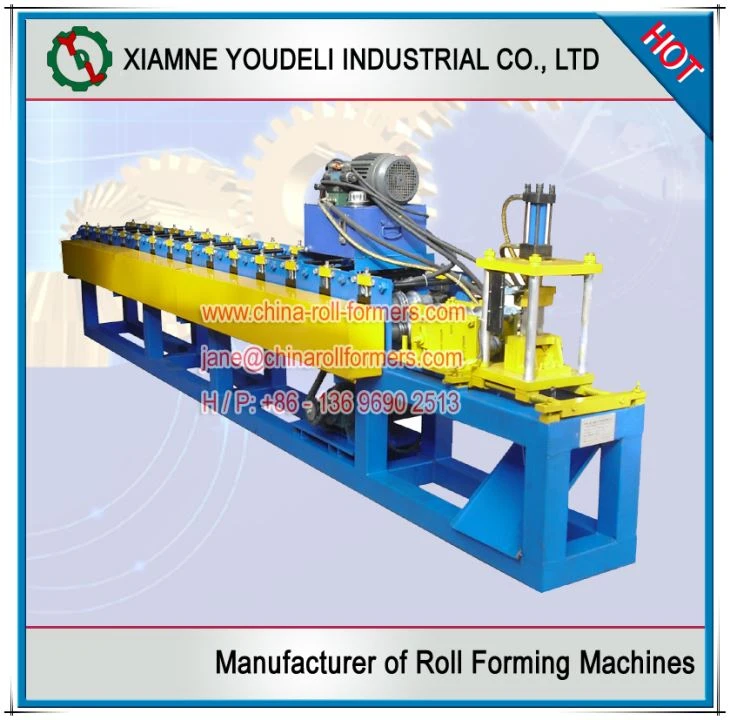

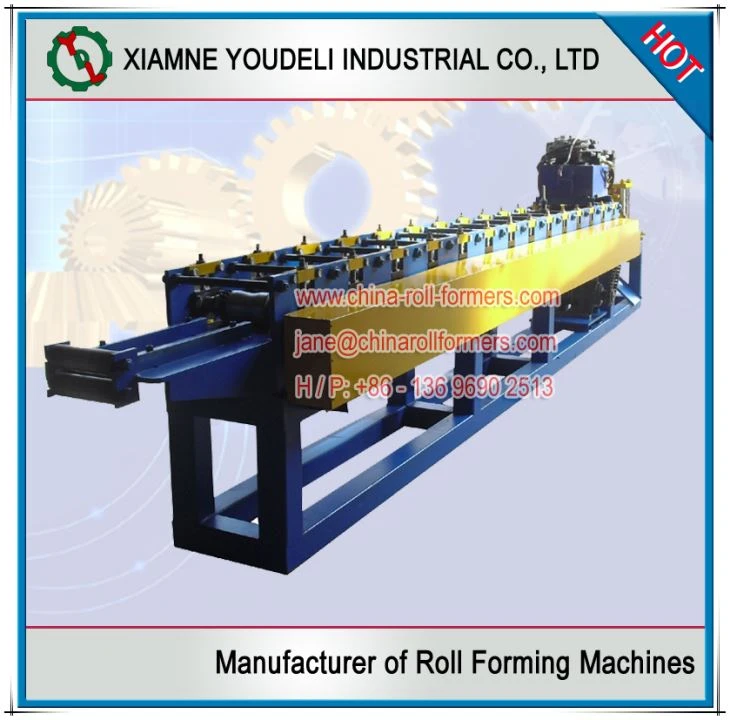

Shutter Door Roll Forming Machine

The Shutter Door Roll Forming Machine is engineered to help industrial door, rolling shutter, and security door manufacturers establish a stable, high-efficiency production line for metal door panels. The equipment processes various materials including galvanized steel, color-coated steel, and aluminum, continuously forming diverse shutter door profiles to meet market demands for rolling shutter doors, garage doors, and storefront doors.

As a manufacturer with extensive experience in metal forming equipment, we deeply understand B2B clients' requirements for production capacity, operational stability, maintenance costs, spare parts accessibility, and customization capabilities. Accordingly, this shutter door production line incorporates industry-proven solutions in its mechanical structure, control systems, and safety protection features to ensure uninterrupted long-term continuous production.

This Shutter Door Roll Forming Machine integrates uncoiling, feeding, forming, and shearing into a single automated production line, achieving fully automatic operation through PLC control. The machine allows for customization of rollers, forming stages, and cutting blade configurations according to different shutter slat profiles, enabling customers to effortlessly expand their product range with new door types.

1.Stable Roll Forming Structure
The all-steel welded frame, precision-machined forming stages, and calibrated alignment system ensure uniform panel thickness, consistent curvature, and smooth seams throughout the forming process. This design prevents warping or edge deformation, making it suitable for high-volume production of commercial rolling shutters and industrial security doors.

2.Versatile Material Compatibility
The machine processes a range of common shutter door materials, including galvanized steel, pre-painted steel coils, and aluminum coils. Material thickness can be customized to client requirements, with a standard range of 0.5–1.2 mm.

3.Automatic Cutting & Punching

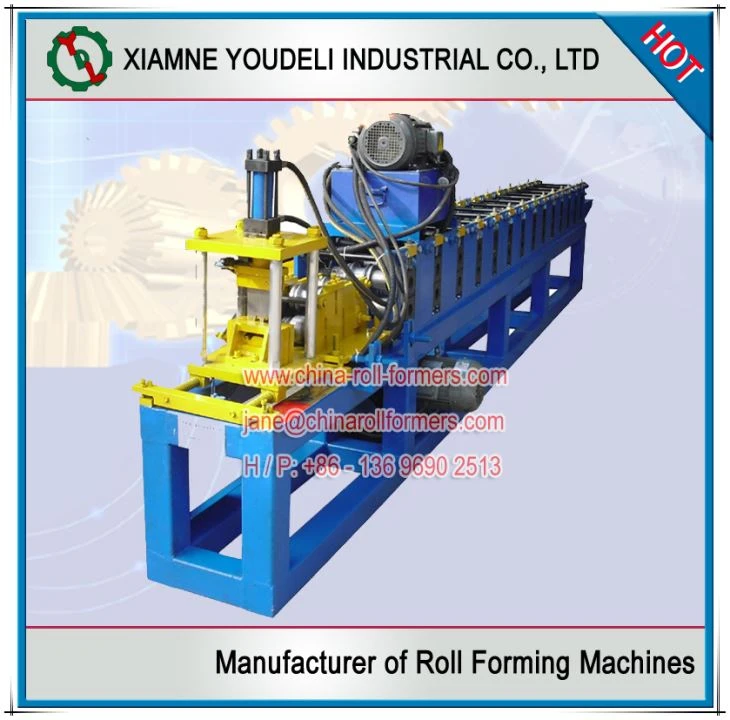

The hydraulically-driven cutting unit performs clean cuts without damaging the panel coating, delivering smooth end finishes. Selected models support customized punching units for pre-punched holes, lock holes, mounting holes, and other functional openings.

4.PLC Control System
Equipped with a touchscreen interface for setting length, batch control, production counting, and停机报警 functions. The user-friendly operation allows new operators to quickly adapt, reducing reliance on specialized labor.

01

Stable Core Forming Structure

The main unit employs an integral steel-frame welded construction that provides substantial rigidity, maintaining stable operational trajectory even during prolonged continuous production.

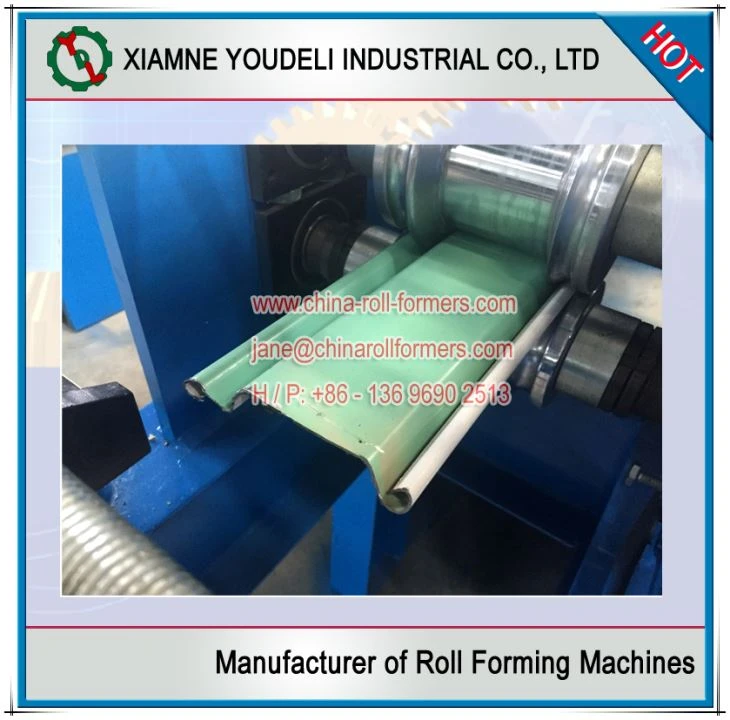

Precision-machined rollers ensure consistent performance at every forming stage, resulting in smooth door panel curvature and scratch-free surface finish.
With exceptionally smooth operation and minimal vibration, the machine is ideally suited for manufacturing industrial-grade rolling shutters where stringent product quality standards must be met.

02

High-Efficiency Automated Production System

The main unit operates in seamless coordination with feeding, leveling, and cutting modules, establishing a continuous automated production flow that significantly reduces manual intervention.

The PLC control system enables rapid adjustment according to order quantities, ensuring quicker changeover response times.

Whether handling large-volume production runs or customized specifications, this machine maintains consistent output quality and operational stability.

03

The main machine can be equipped with custom-designed rollers tailored to different shutter slat structures, ensuring each client receives a dedicated forming solution.

Shaft materials, roller specifications, and the number of forming stations can all be flexibly configured to match local material thicknesses and operating conditions.

From lightweight door panels to high-strength security shutters, this system delivers precise and accurate forming for all applications.

About Product

Shutter Door Roll Forming Machine is a multi-joint activities of the door in series together, in a fixed chute, the upper door scroll up and down as the center of the door.We can usage garage doors, shopping malls fire shutter doors, hangar doors and so on.How to make the rolling shutter door ? The shutter door roll forming machine can solve this problem.

This equipment is suitable for:

  Manufacturing industrial rolling shutter doors

  Producing commercial storefront shutter systems

  Fabricating garage rolling door panels

  Supplying warehouse steel rolling doors

  Building residential security doors

  Serving metal shutter slat distributors and fabrication plants

For businesses seeking to expand production capacity, reduce costs of purchasing finished door panels, or establish local rolling shutter door manufacturing capabilities, this system provides a proven and reliable solution.

With its industrial-grade frame, customizable forming molds, broad material compatibility, and stable 24/7 continuous production capability, this machine is more than just equipment-it is a core production line that helps factories rapidly scale their output. Whether for large-scale rolling shutter door manufacturers, window and door producers, construction hardware distributors, or startup teams establishing a rolling shutter door workshop, it delivers reliable and consistent production capacity.

We also provide a comprehensive service package covering profile development, technical drawing design, on-site installation and commissioning, and ongoing spare parts supply. This ensures the equipment can be fully integrated into your production line from day one.
