Products Overview
The Cable Tray Roll Forming Machine is designed to produce high-strength cable tray systems used in electrical installation and industrial cable management. The machine supports the production of both C-type cable trays and U-type cable trays, offering flexible size options to meet different engineering requirements.
With stable forming performance and an integrated punching and cutting system, this production line allows manufacturers to produce cable trays with consistent quality and high efficiency. It is an ideal solution for companies engaged in electrical equipment manufacturing, cable tray production, and metal fabrication.
Products Description
Xiamen Youdeli Industrial Co., Ltd
Xiamen Youdeli Industrial Co., Ltd. is a professional manufacturer specializing in the design and production of roll forming machines and metal forming equipment. With years of experience in the industry, the company focuses on providing reliable machinery solutions for roofing systems, steel structure components, cable trays, solar mounting structures, and other building materials.
large enterprise scale
Efficient and precise processing and testing equipment.
Standardized Production
Passed ISO9001 certification and obtained relevant patent certificates.
High-Quality Customized Services
No intermediate links, providing one-stop service from design, processing, mold trial to mass production.

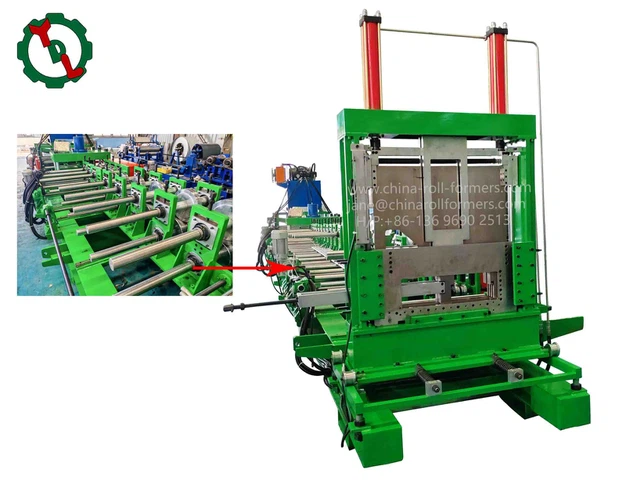

The Cable Tray Roll Forming Machine is designed to produce metal cable trays used for supporting and organizing electrical cables in various construction and industrial projects. The machine processes metal coils such as galvanized steel or stainless steel and forms them into cable tray profiles through a continuous roll forming process.
During operation, the material passes through leveling, punching, roll forming, and cutting stages to create cable trays with consistent dimensions and clean edges. The integrated punching system can produce mounting holes and slots required for installation, while the PLC control system allows operators to set the production length and quantity automatically.
With stable forming performance and continuous operation capability, the machine enables manufacturers to produce different cable tray sizes efficiently, ensuring reliable product quality and improved production efficiency.

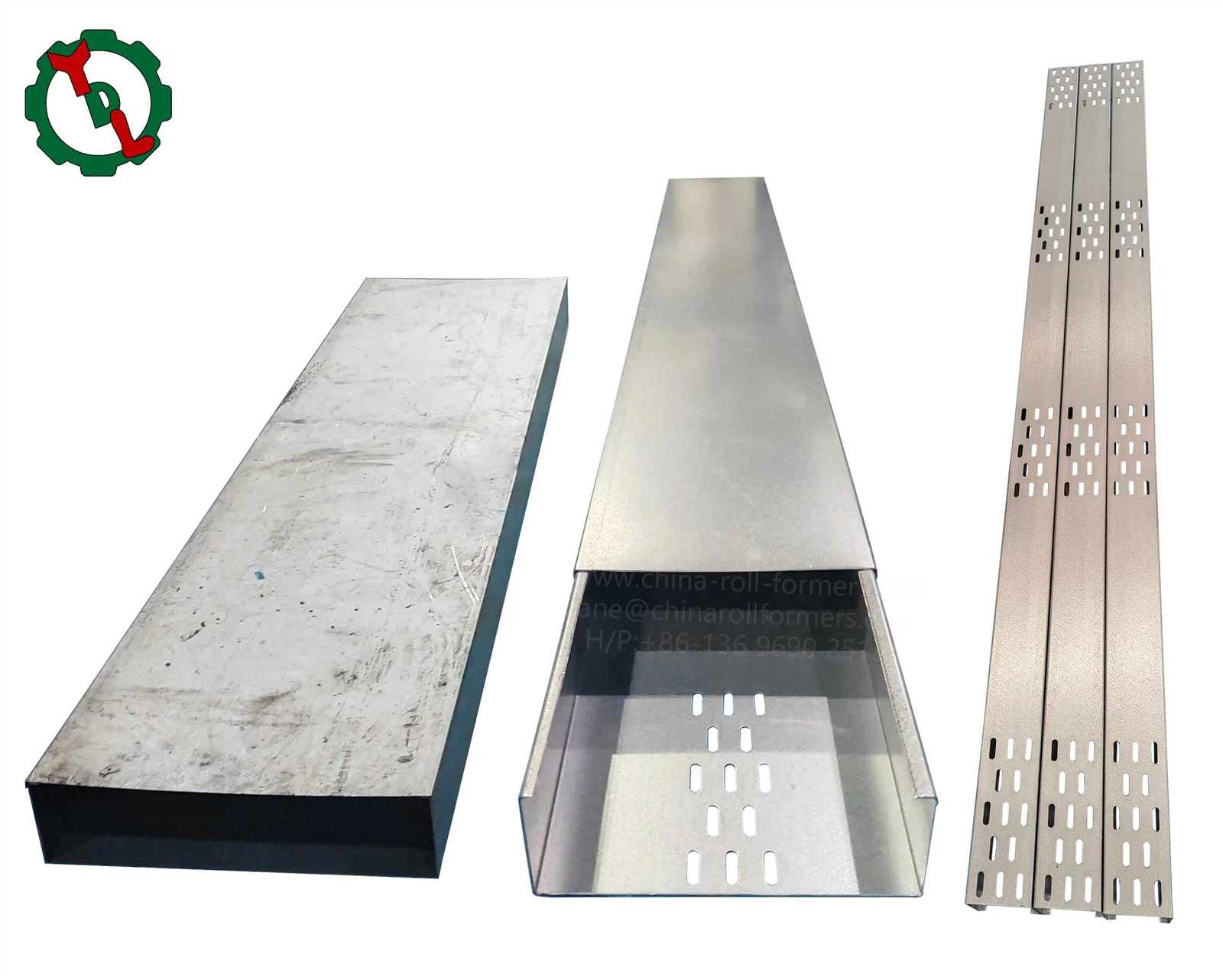

sample
Samples of cable trays produced by the Cable Tray Roll Forming Machine demonstrate the accuracy and consistency of the forming process. The finished trays feature precise dimensions, smooth edges, and well-aligned punching holes, ensuring they meet standard installation requirements for cable management systems.
Different tray sizes and profiles can be produced according to project specifications, including various widths, heights, and thicknesses. The samples reflect the stable forming quality of the machine and the ability to maintain uniform results during continuous production. These finished cable trays are suitable for use in industrial plants, commercial buildings, and electrical infrastructure projects where reliable cable support systems are required.

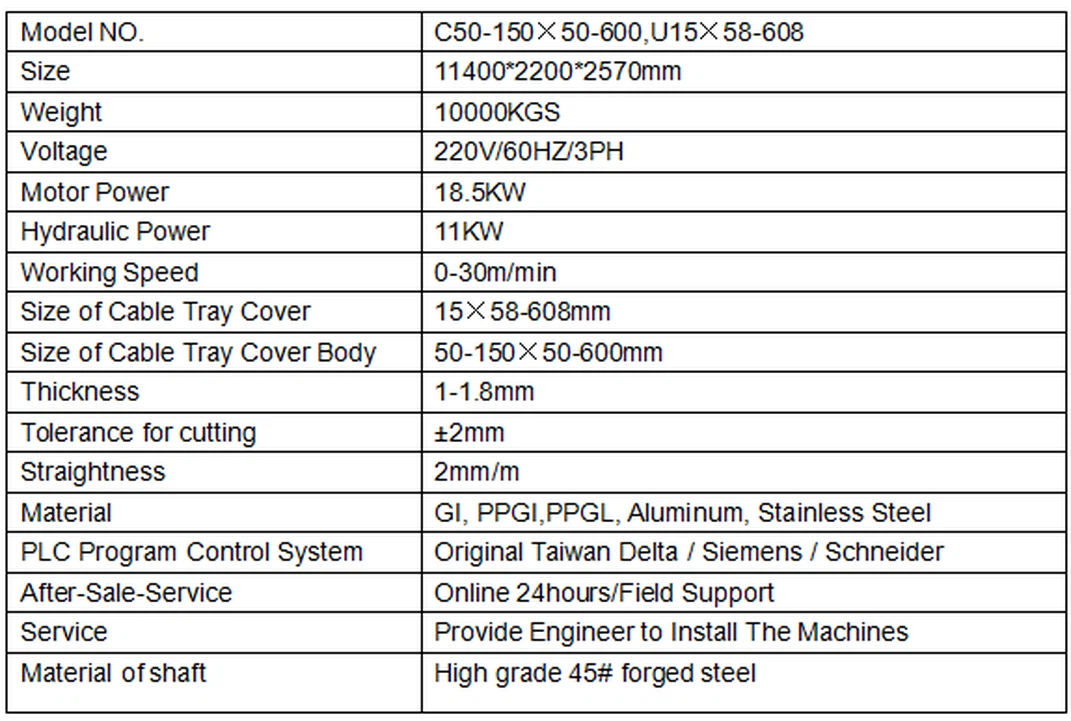

Technical Parameters

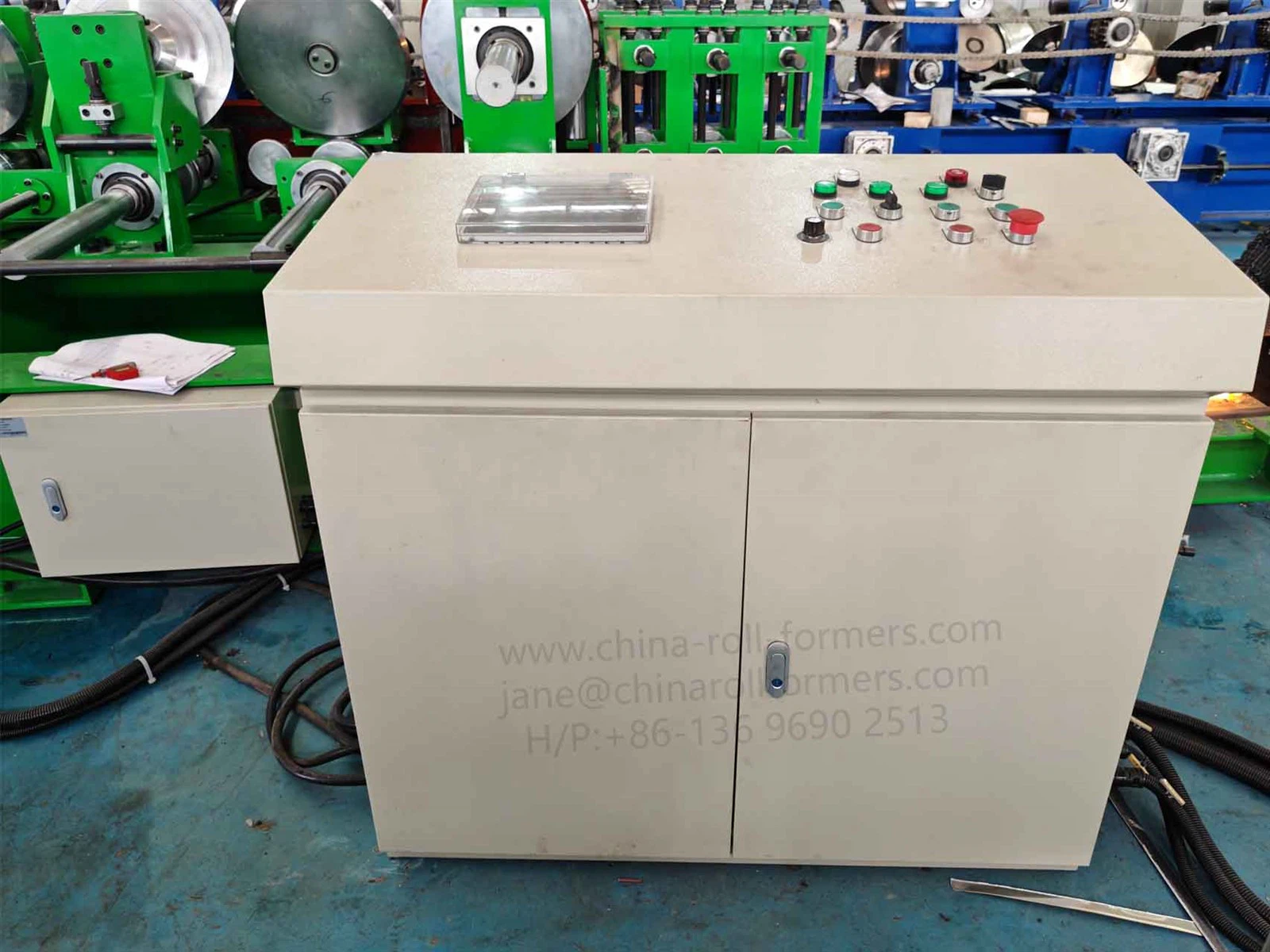

PLC Program Control System
The Cable Tray Roll Forming Machine is equipped with a PLC program control system that allows the entire production process to run automatically and efficiently. Through the touch screen interface, operators can easily set key parameters such as production length, batch quantity, and cutting position. Once the program is set, the machine can operate continuously with stable performance and minimal manual intervention.
The control system also improves production accuracy by coordinating the operation of the punching unit, roll forming section, and hydraulic cutting system. This ensures that each cable tray is produced with consistent length and precise hole positioning. In addition, the PLC system is designed for easy operation and maintenance, making it convenient for operators to monitor the machine status and adjust settings when necessary.

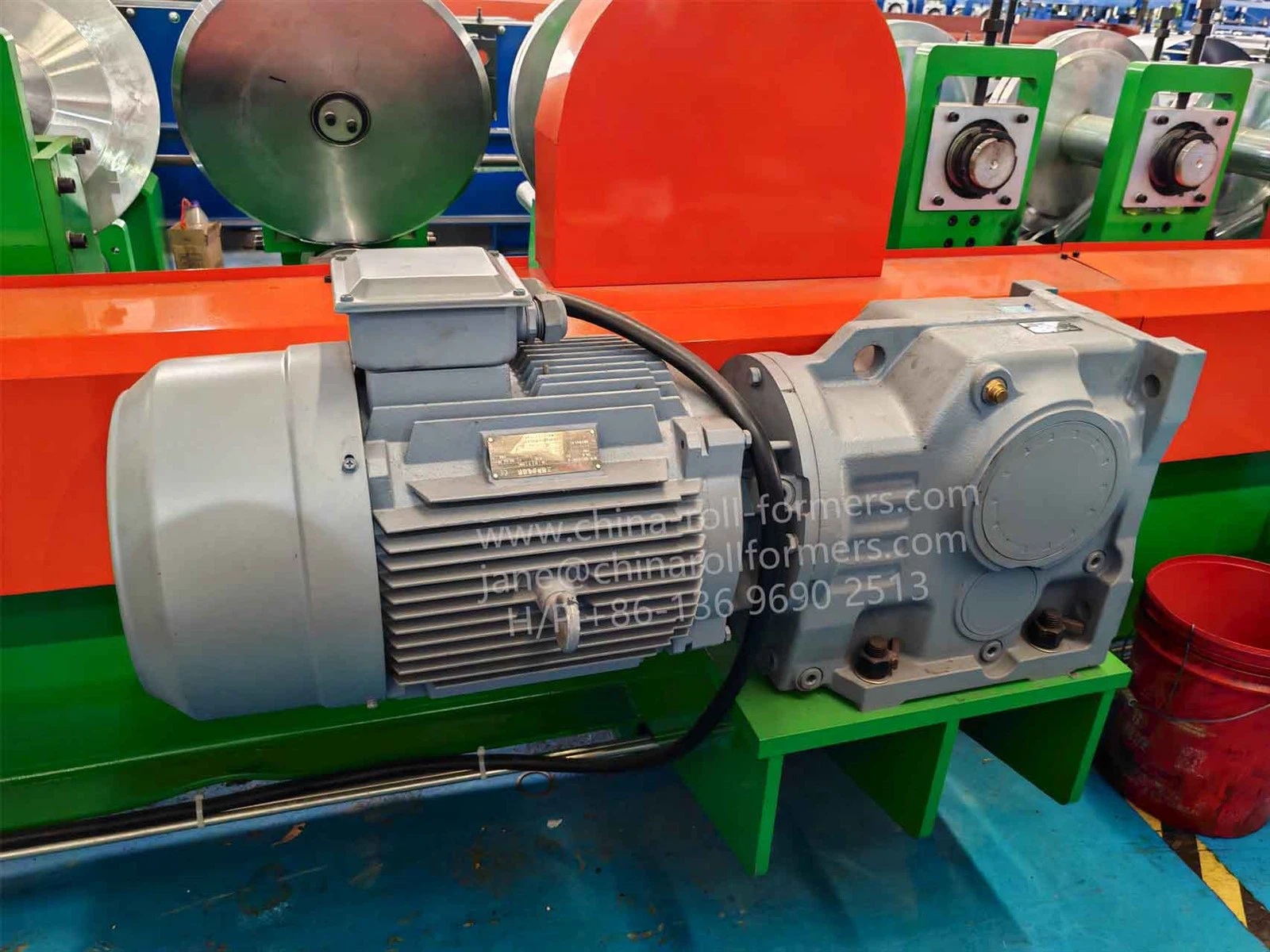

motor
The machine is equipped with an 18.5KW high-power drive motor, providing strong and stable power for the roll forming process. With sufficient torque output, the motor ensures smooth operation even when processing thicker materials or running the production line continuously for long periods.
This high-power configuration helps maintain stable forming speed and reduces the risk of vibration or power fluctuation during operation. As a result, the machine can deliver reliable performance, consistent product quality, and improved production efficiency in cable tray manufacturing.

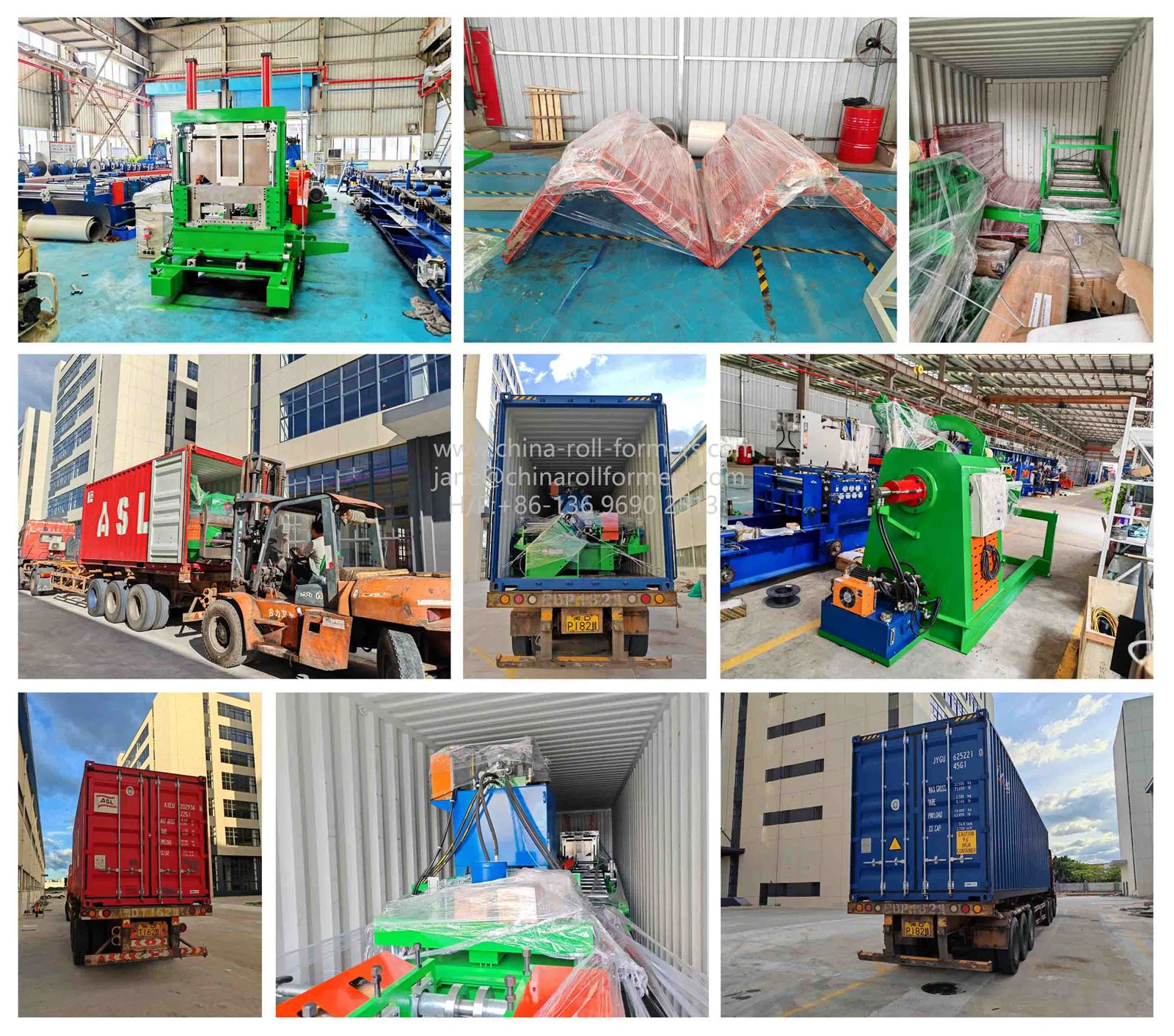

Shipping and Packaging
Before shipment, each Cable Tray Roll Forming Machine is carefully inspected and prepared to ensure it arrives safely at the customer's site. All main machine parts are cleaned and protected with anti-rust oil to prevent corrosion during transportation. Sensitive components such as the PLC control cabinet, electrical parts, and hydraulic elements are securely wrapped with protective materials to avoid damage.
The main roll forming machine and heavy structural parts are usually fixed directly inside the container using steel wires and wooden blocks to prevent movement during sea transportation. Smaller accessories and spare parts are packed in strong wooden crates or cartons for additional protection and easy handling.
This packaging method ensures that the equipment remains stable and well protected throughout the shipping process, allowing customers to receive the machine in good condition and ready for installation.
