Portable Standing Seam Roofing Roll Machine

Portable Standing Seam Roof Machine Quick Details Model NO:KLS38-220-530; Control System: PLC Computer Controlling System with Touch Screen; Raw material:GIsteel, PPGI, Al... Min.Order Quantity: 1 Set/Sets; Usage:Produce standing seam roofing panels; Packing: standard for export;...

Chat Now
Product Details

Portable Standing Seam Roofing Roll Machine

Quick Details

Model NO:KLS38-220-530;

Control System: PLC Computer Controlling System with Touch Screen;

Raw material:GIsteel, PPGI, Al...

Min.Order Quantity: 1 Set/Sets;

Usage:Produce standing seam roofing panels;

Packing: standard for export;

Port:XIAMEN,China;

Payment Terms:L/C,T/T;

After-sales Service Provided.

PRODUCT DESCRIPTION

KLS25-200-530 Portable Standing Seam Roofing Roll Machine

Main Technic Parameter:

 Size

 2000*1200*1200mm

 Weight

 1100KGS

 Voltage

 380V/50HZ/3PH

 Motor Power

 2.2KW

 Hydraulic Power

 2.2KW

 Forming Steps

 6steps

 Forming Steel Thickness

 0.5-0.8mm

 Forming Aluminum Thickness

 0.7-1.0mm

 Height of Roofing

 25mm

 Effective Width of Roofing

 200mm - 530mm

 Material Width

 280mm - 610mm

 Tolerance

 ±2mm

 Roller material

 High grade 45# forged steel, Plated hard chrome

 and polished all the rollers

 Material of principal   axis

 High grade 45# forged steel

 Sprocket wheel

 45 steel high-frequencies quench

 Cut-off system

 Hydraulic cutting device

 Material for Blade

 Cr12 mold steel with quenched treatment

 Material for frame of machine

 Fine welded structural steel,and one side of

 frame can be moved for adjusting   the size

 200mm to 530mm;

 Material for producing roofing

 Normal PPGI,GI steel, Aluminum

 Painted Color

 Green or Customization

Main Accessories:

NOItemsQuantityRemarks
1Manual/Hydraulic Uncoiler1setUp to customer
2Main forming machinePre-cutting device1setUp to customer
Feeding device1set
Hydraulic system
1set
Roll forming system1set
Post cutting device1set
Protective cover1setUp to customer
3PLC control system with touch screen1set
4Run out table4pcsUp to customer

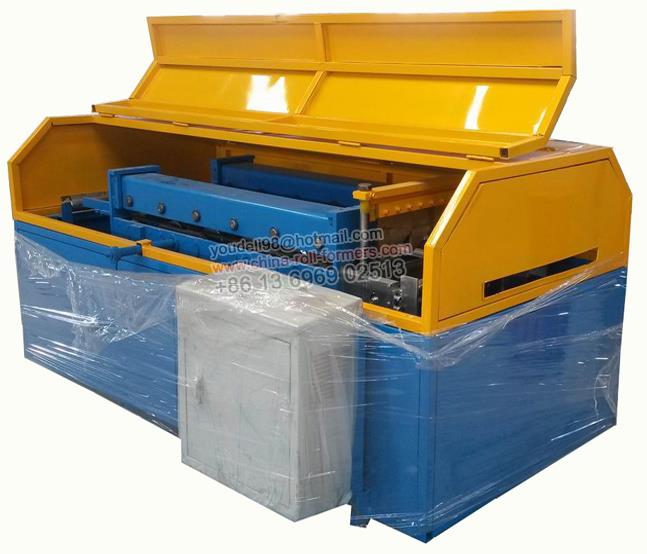

Product Show
