65mm Standing Seam Metal Roof Panel Roll Forming Machine

65mm Standing Seam Metal Roof Panel Roll Forming Machine Quick Details Model NO:YX65-300-400-425; Control System: PLC Frequency Control System with Touch Screen; Raw material:Al-Mg-Mn sheet, galvanized shee,colored prepainted sheet... Min.Order Quantity: 1 Set/Sets; Usage:Production of Roof...

Chat Now
Product Details

65mm Standing Seam Metal Roof Panel Roll Forming Machine

Quick Details

Model NO:YXYX65-300-400-425;

Control System: PLC Frequency Control System with Touch Screen;

Raw material:Al-Mg-Mn sheet, galvanized shee,colored prepainted sheet...

Min.Order Quantity: 1 Set/Sets;

Usage:Production of Roof Panel;

Packing: standard for export;

Port:  XIAMEN,China ;

Payment Terms:  L/C,T/T;

After-sales Service Provided.

PRODUCT DESCRIPTION

YX65-300-400-425 65mm Standing Seam Metal Roof Panel Roll Forming Machine:

Main Technic Parameter:

 Size

 5800*1700*1500mm

 Weight

 7000KGS

 Voltage

 380V/50HZ/3PH

 Motor Power

 7.5KW*2 sets

 Hydraulic Power

 2.2KW

 Forming Steps

 13

 Working Speed

 8-14m/min

 Height of Roofing

 65mm

 Effective Width

 400mm,425mm

 Feeding Material Width

 575-578mm,600-603mm

 Thickness for Aluminum Sheet

 0.8-1.2mm

 Thickness for Steel

 0.6-1.0mm

 Min. Width of tapered roofing

 250mm

 Min.Length of tapered roofing

 1000mm

 Cutting,Forming Tolerance

 ±2mm

 Roller material

 High grade 45# forged steel, Plated hard chrome

 and polished all the rollers

 Material of shaft

 High grade 45# forged steel

 Sprocket wheel

 45 steel high-frequencies quench

 Cut-off system

 Hydraulic cutting device

 Material for Blade

 Cr12 mold steel with quenched treatment 60-62°C

 Material for frame of machine

 Fine welded structural steel;

 Material for producing roofing

 Aluminum Sheet,PPGI Steel and G.I. Steel

 Painted Color

 Customization

Main Accessories:


(1) Main Forming Machine for making   Straigt and Tapered Standing Seam Roofing;

(2) 5 Tons*600mm   Uncoiler ;


(3) Hydraulic System;

(4) PLC Computer Controlling System With Touch Screen ( Brand:Schneider );

(5) Hydraulic  Forming Cutter(2 sets cutters,one set for YX65-400,one set for YX65-425);

(6) Device for  making tapered standing seam roofing;

(7) Safety Cover;

(8) Auto Seamer (2 set, Voltage:   220V/50HZ/1PH, 3 Steps for seaming straight roofing sheet);

(9) Hand Seamer(3 PCS);

(10) Run out tables(3 PCS);

(11) Tools;

(12) Operation Manual.

WORKING PROCESS


MORE PRODUCTS

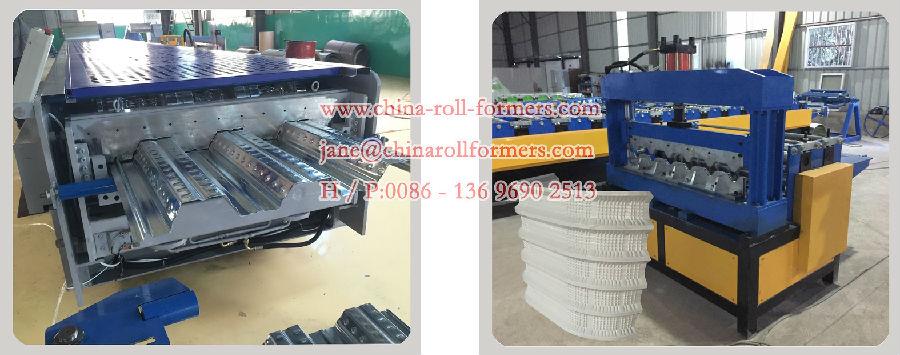

Roll Forming Equipment
Hydraulic Roof Curving Machine

Portable Metal Roofing Machine and Metal Roof Bending Machine
Metal Flattening Equipment



Roof Tile Making Machine


Roof Ridge Making Machine

 C Z Purin Roll Forming Machine
 Light Gauge Steel Framing Machine

Steel Floor Decking Making Machine
Roof Sheet Crimping Machine

OUR ADVANTAGE

1.High quality Raw materials, Parts, PLC computer controlling system for our machines.

2.Groups of professional engineers, designers and oversea sales for roll forming machines.

3.Rich experiences of design and manufacture, and export for roll forming machines.

4.Customize machines as per your requests.

5.Punctual delivery time, Good technology support and After-sale service, Long quality guarantee.

OUR SERVICES

If you are interested in any of our products or would like to discuss a custom order, Our would be provided with below services

OUR CUSTOMERS & EXHIBITION


PROJECT

Youdeli Industrial is one of the leading manufacturers and suppliers of 65mm standing seam metal roof panel roll forming machine for sale. Our factory has been specialized in the design, development and manufacturing of good quality and customized products made in China for over 10 years. Welcome to try our good service.
