Metal Ceiling Panel Roll Forming Machine with Automatic Cutter

Metal Ceiling Panel Roll Forming Machine With Automatic Cutter Quick Details Model NO:YX25-300; Control System: PLC Computer Controlling System With Touch Screen; Raw material:Aluminum Sheet... Working Speed:5-8m/min; Min.Order Quantity: 1 Set/Sets; Usage:Production of Ceiling Panel or Wall...

Chat Now
Product Details

Metal Ceiling Panel Roll Forming Machine With Automatic Cutter

Quick Details

Model NO:YX25-300;

Control System: PLC Computer Controlling System With Touch Screen;

Raw material:Aluminum Sheet...

Working Speed:5-8m/min;

Min.Order Quantity: 1 Set/Sets;

Usage:Production of Ceiling Panel or Wall Panel;

Packing: standard for export;

Port:  XIAMEN,China;

Payment Terms:  L/C,T/T;

After-sales Service Provided.

PRODUCT DESCRIPTION

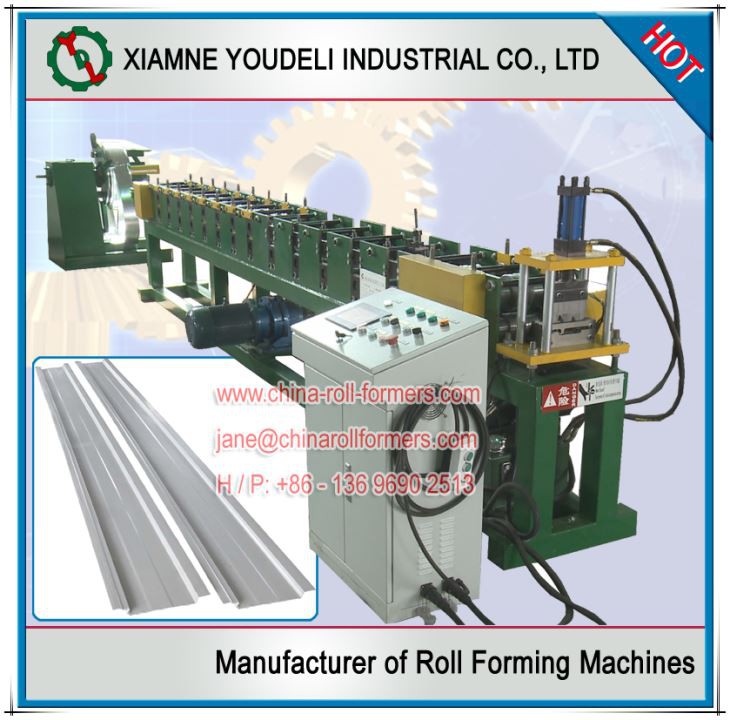

YX25-300 Metal Ceiling Panel Roll Forming Machine With Automatic Cutter:

Main Technic Parameter:

 Size

 7500*1200*1400mm

 Weight

 5000KGS

 Voltage

 380V/50HZ/3PH

 Main Motor Power

 5.5KW

 Hydraulic Power

 3.7KW

 Forming Steps

 16

 Working Speed

 5-8m/min

 Height of Ceiling Panel

 25mm

 Effective Width

 300mm

 Thickness

 1.0mm to 1.2mm  (Material:Aluminum Sheet)

 Tolerance

 ±2mm

 Roller material

 High grade 45# forged steel,Plated   hard chrome

 And polished all the rollers

 Material of principal axis

 High grade 45# forged steel

 Sprocket wheel

 45 steel high-frequencies quench

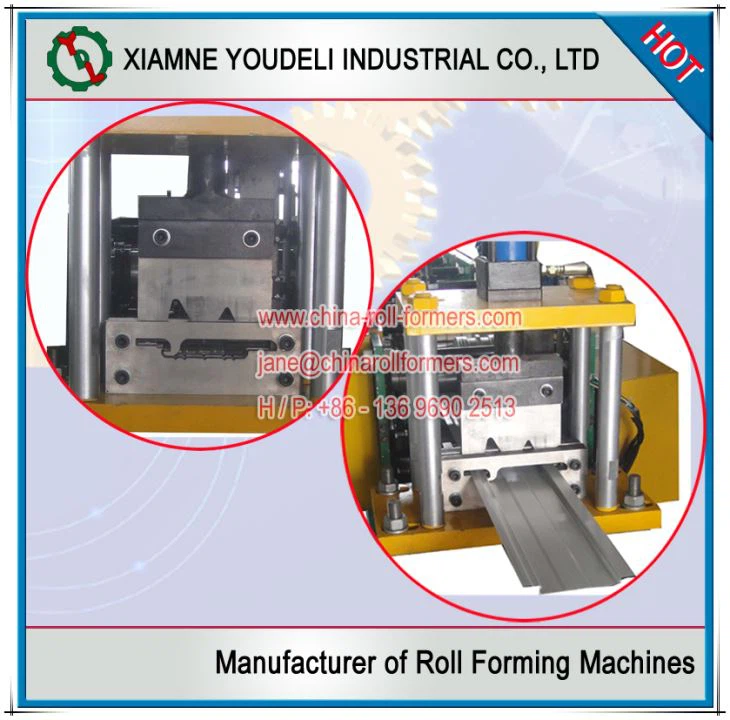

 Cut-off system

 Hydraulic cutting device

 Material for Blade

 Cr12 mold steel   with quenched treatment 60-62℃

 Material for frame of machine

 Fine welded structural steel;

 Material for roofing

 Steel sheet G330,G550

 Painted Color

 Green or Customization

Main Accessories:

(1) Main   Forming Machine for Ceiling Panel;

(2) 5 Tons Manual Uncoiler;

(3) Hydraulic System;

(4) PLC Computer Controlling System With Touch Screen;

(5) Hydraulic Pre-punching Device;

(6) Hydraulic Forming Cutter;

(7) Run out Tables(   3PCS )

(8) Tools;

(9) Operation Manual.

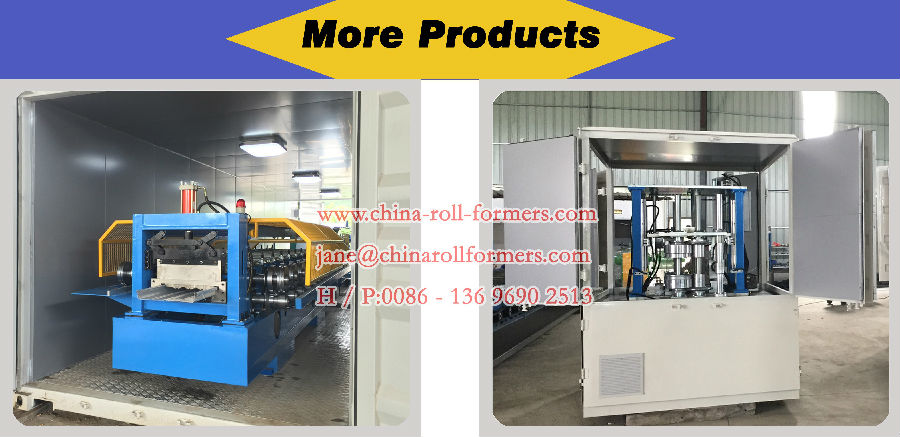

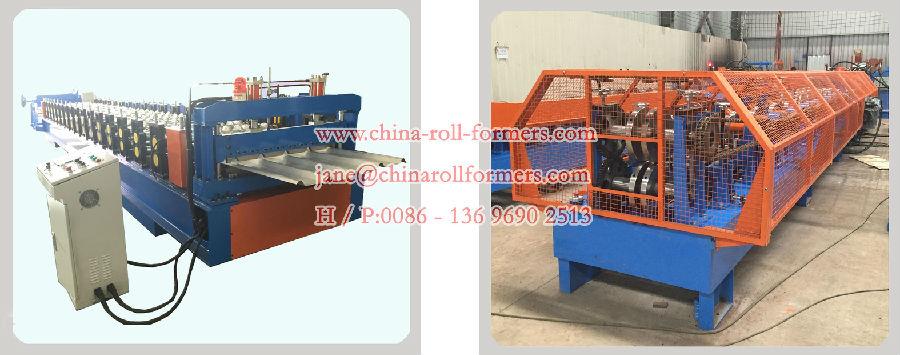

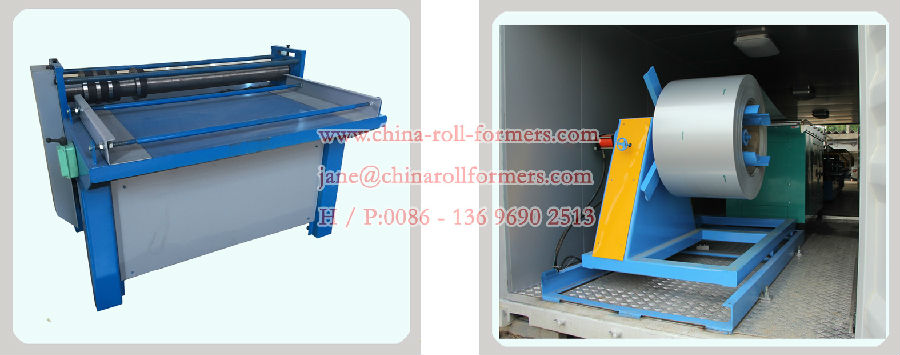

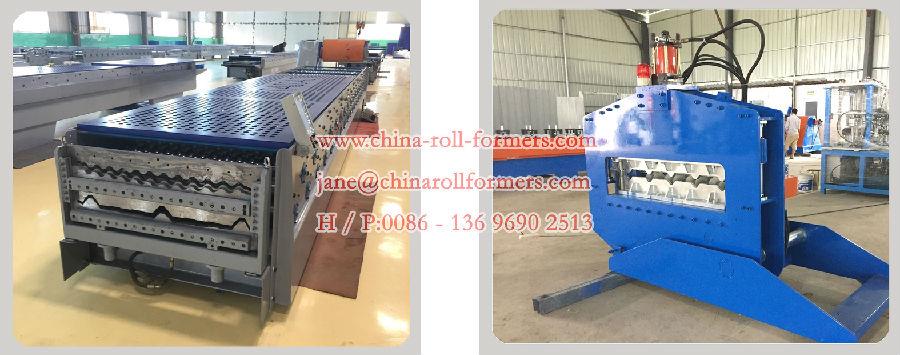

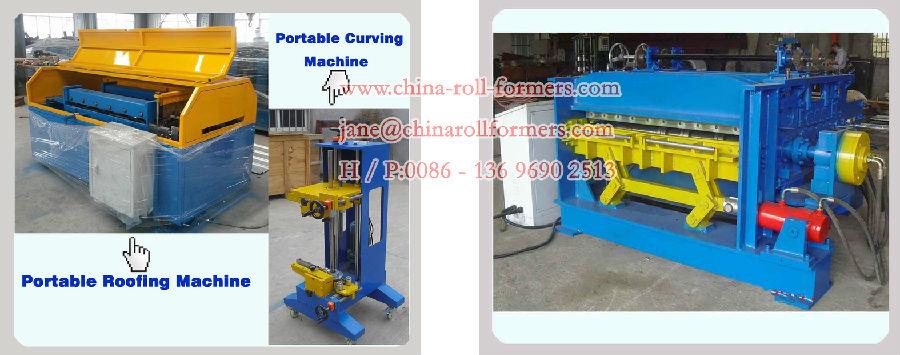

MORE PRODUCTS
