Steel Shutter Door Roller forming Making Machine with Automatic Cutting

Steel Shutter Door Roller Forming Making Machine With Automatic Cutting Quick Details Model NO:JM85; Control System: PLC Computer Controlling System With Touch Screen; Forming Steps:14+3steps for reshape; Forming Speed:8-12m/min; Min.Order Quantity: 1 Set/Sets; Usage:Production of Rolling...

Chat Now
Product Details

Steel Shutter Door Roller Forming Making Machine With Automatic Cutting

Quick Details

Model NO:JM85;

Control System: PLC Computer Controlling System With Touch Screen;

Forming Steps:14+3steps for reshape;

Forming Speed:8-12m/min;

Min.Order Quantity: 1 Set/Sets;

Usage:Production of Rolling Shutter Door;

Packing: standard for export;

Port:XIAMEN,China;

Payment Terms:L/C,T/T;

After-sales Service Provided.

PRODUCT DESCRIPTION

JM85 Steel Shutter Door Roller Forming Making Machine With Automatic Cutting:

Main Technic Parameter:

 Size

 5600*1000*1400mm

 Weight

 1550KGS

 Voltage

 220V/60HZ/3PH

 Motor Power

 4KW

 Hydraulic Power

 2.2KW

 Forming Steps

 14+3steps for reshape

 Forming Speed

 8-12m/min

 Effective Width

 85mm

 Feeding Material Width

 136mm

 Material Thickness

 0.6-0.8mm

 Thickness for common use and test

 0.6mm,0.8mm

 Tolerance

 ±2mm

 Roller material

  High grade 45# forged steel,   polished

  and plated hard chrome for the   rollers

 Material of principal axis

 High grade 45# forged steel

 Sprocket wheel

 45 steel high-frequencies quench

 Cut-off system

 Hydraulic cutting device

 Material for Blade

 SKD-11 steel

 Material for frame of machine

 Fine welded structural steel;

 Material for Producing Roofing

 Normal Colored Painted and Galvanized Sheets

 with Strength 245, 345MPA

 Painted Color

 Green or Customization

Main Accessories:

(1) Main   Forming Machine ;

(2) 3MT Manual   Un-coiler(2SETS);

(3) Feeding Device;

(4) Hydraulic System;

(5) PLC Computer Controlling System With Touch Screen;

(6) Hydraulic Forming Cutter ( Fixed its position );

(7) Run out Tables(2pcs, Length:2M )

(8) Tools;

(9) Operation   Manual.

WORKING PROCESS

MORE PRODUCTS

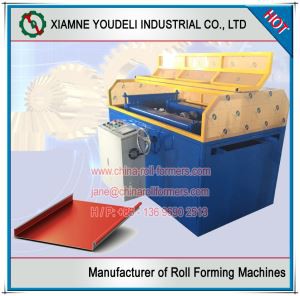

Standing Seam Metal Roofing Machine
Standing Seam Bending Machine


Steel Decking Roll Forming Machine
C Channel Roll Forming Machine

Trapezoidal Roofing Sheet Roll Forming Machine
 Steel Sheet Cutting Machine

Metal Roof Tile Making Machine
Ridge Cap Forming Machine

Joint-hidden Roofing Forming Machine
Hydraulic Sheet Metal Folding Machine

OUR ADVANTAGE

1.High quality Raw materials, Parts, PLC computer controlling system for our machines.

2.Groups of professional engineers, designers and oversea sales for roll forming machines.

3.Rich experiences of design and manufacture, and export for roll forming machines.

4.Customize machines as per your requests.

5.Punctual delivery time, Good technology support and After-sale service, Long quality guarantee.

OUR SERVICES

If you are interested in any of our products or would like to discuss a custom order, Our would be provided with below services

OUR CUSTOMERS & EXHIBITION


PROJECT

Youdeli Industrial is one of the leading manufacturers and suppliers of steel shutter door roller forming making machine with automatic cutting for sale. Our factory has been specialized in the design, development and manufacturing of good quality and customized products made in China for over 10 years. Welcome to try our good service.
